Mercedes Benz Sprinter 416 CDI 4×4 RAV Fire Fighting Vehicle – 50618
You can view the items you want quotes on by clicking
View Selected Items above.
Individual items can be removed from the list using the red waste-bin button.
Individual items can be removed from the list using the red waste-bin button.

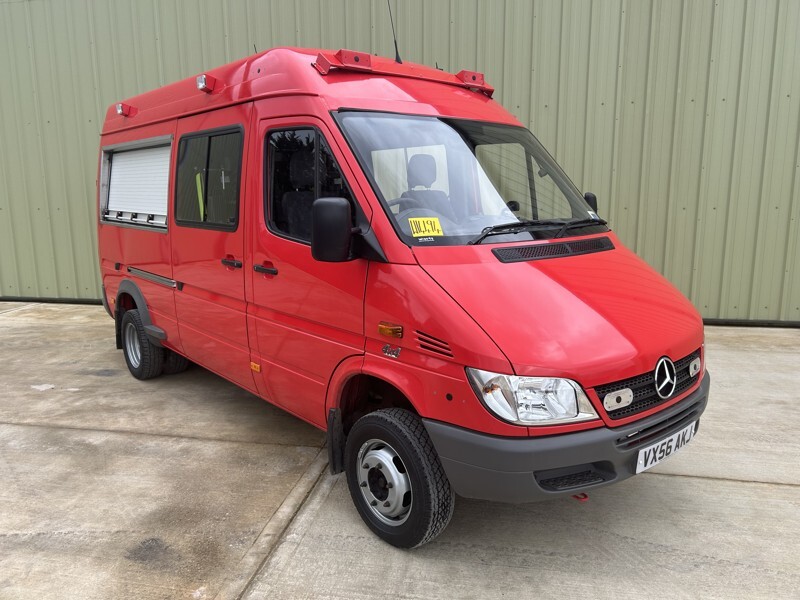

Mercedes Benz Sprinter 416 CDI 4x4 RAV Fire Fighting Vehicle
Item Ref
Ref: 50618
Category
Fire Engine
Manufacturer
Mercedes Benz
Quantity
1
Hours / Mileage
14,971 miles
Single Item Quote
Multi Item Quote
About This Item
Technical Specification: Mercedes-Benz Sprinter 416 CDI 4x4 Restricted Access Vehicle (RAV)
General Vehicle Data Specification
Mercedes-Benz Sprinter 416 CDI 4x4 RAV Firefighting Vehicle
| Coach Builder | John Dennis |
| Vehicle Registration | VX56 AKJ |
Mercedes-Benz Sprinter ex-Municipal Fire and Rescue Service vehicle. Restricted Access Vehicle designed for off-road firefighting capability.
| Manufacturer / Model | Mercedes-Benz Sprinter 416 CDI |
| Vehicle Type | Restricted Access Vehicle (RAV) / First Strike Fire Appliance |
| Body Style | Crew Cab with Specialist Firefighting Rear Box Body |
| Date In Service | 04/12/2006 |
| Mileage | 14,971 miles |
| Condition | Very Good Overall - Some age related marks |
| Decommissioned | Operational livery and blue lights removed |
| Previous Operator | Hereford & Worcester Fire & Rescue Service, Whitchurch Station |
| Registration Status | UK road registered, V5 to be applied for |
Engine & Drivetrain Specification
| Engine Displacement | 2686 cc |
| Engine Type | Inline Turbo Diesel |
| Transmission | 5-Speed Manual |
| Drive Type | 4-Wheel Drive (4x4) |
| Traction & Handling | High/Low Ratio Gearbox, Differential Locks, ASR (Acceleration Skid Regulation) |
| Steering | Power Assisted Steering (PAS) |
| Steering Position | Right-Hand Drive (RHD) |
Weights & Dimensions
| Overall Length | 5,645 mm |
| Overall Width | 1,994 mm |
| Overall Height | 8 ft 6 in (approximately 2,590 mm) |
| Gross Vehicle Weight (GVW) | 4,600 kg |
| Permissible Towing Weight | 6,600 kg maximum |
| Maximum Front Axle Load | 1,800 kg |
| Maximum Rear Axle Load | 3,200 kg |
| Tyre Size | 195/70 R15 |
Cab & Crew Accommodation Specification
| Seating Capacity | Up to 5 Crew Members |
| Cab Configuration | Integrated Crew Cab |
| Interior Equipment | 3 x Dräger Breathing Apparatus (BA) Set Brackets/Cradles in the Rear Cab |
Firefighting System & Stowage Specification
| Foam System | One Seven Foam System |
| Water Tank Capacity | 450 to 500 Litres |
| Foam / CAFS System | Self-contained Schmitz One-Seven Compressed Air Foam System |
| Finished Media Output | Approximately 3,500 Litres Potential |
| Hose Reel | Collins Youldon HR43 |
| Locker Configuration | 2 x Nearside and 2 x Offside Equipment Lockers |
| Locker Doors / Access | Roller Shutter Doors with Slide-Out Equipment Trays |
| Auxiliary Electricals | Onboard Power Inverter and Dedicated Charging Docks for Rescue Equipment |
Specifications
| Category | Fire Engine |
| Manufacturer | Mercedes Benz |
| Engine | 2686 cc in line turbo diesel |
| Gearbox | 5 Speed Manual |
| Brakes | Hydraulic |
| Steering | PAS RHD |
| Maximum Load | |
| Electrics | 12V |
| Length × Width × Height | L: 5,645 mm × W: 1,994 mm × H: 8 ft 6 in (approximately 2,590 mm) |
| Gross Weight | 4,600 kg |
| Date into Service | 2006 |
| Year of Manufacture | 2006 |
| Hours / Mileage | 14,971 miles |
| Quantity Available | 1 |
| Export Requirements | NLR (No Licence Required) |
Condition Report
We offer vehicles in the following conditions:
- As received from the relevant MoD with a workshop check to make sure it runs and drives, but with no reparatory works. (AS IS)
- Fully prepared, including servicing of all major components and a fresh coat of paint. (PREPARED)
Try our new RAL Colour Selector Tool by CLICKING HERE
Delivery & Export
Worldwide delivery available.
Any item which is military by design or has component parts designed for military use will require an export licence to be applied for if being exported from the United Kingdom. For details on export licencing go to: Our Export Licencing Assistant
